Product Details
Brand Name: | WDS | Place of Origin: | China | Model Number: | WDS-650 |
Certification: | CE,ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 60kg |
Voltage: | 110V/220V | Usage: | repair chip IC motherboard | Dimensions: | L600*W640*H850mm |
Rated Duty Cycle: | 100% | Current: | Dependable | Rated Capacity: | 6400W |
Product Description
♥ Welcome to Wisdomshow shop,pls enjoy your shopping time ^.^ !
Original China factory WDS-650 automatic phone tools mobile phone chip motherboard repairing
1. Smart phone /iPhone/iPad repair;
2. Notebook/ Laptop /Computer/Macbook /PC repair;
3. XBOX 360/PS2/ PS3/PS4 Wii and so on video game consoles repair;
4. Othe LED/SMD/SMT/IC BGA rework;
5. BGA VGA CPU GPU soldering desoldering;
6.BGA chips,QFP QFN chip,PC,PLCC PSP PSY rework.
2.High precision optical alignment system------Rework Success Rate 99%+
3.High definition industrial Camera + Laser position + 15 inch LCD Monitor (**We can add a side camera to view the chips melting process,just as your request**)-----Flexible to adjust the machine design
4.Heating Zone (IR Area) is good for Laptop,Mobile Phone,PS3 XBOX360,PCB Board,don't damaged the board------Wide application
What is the parameter of WDS-650 mobile phone repairing machine?
1 | Power supply | AC 110V/220V±10% 50/60Hz |
2 | Total power | Max 6400W |
3 | Heater power | Upper temp.zone 1200W,second temp.zone 1200W,IR temp.zone 4000W |
4 | Locating way | V shape slot,PCB support jigs can adjust,laser light do fast centering and position |
5 | Temperature controlling | (high precision K-sensor)(Closed Loop),independent ntroller,the precision can reach ±1℃ |
6 | Electrical material | Driving motor+ smart ntroller+color touch screen |
7 | PCB size | Max 410×380mm Min 10×10 mm |
8 | Applicable chips | Max 70×70mm Min 1×1 mm |
9 | Applicable PCB thickness | 0.3-5mm |
10 | Alignment system | Optical lens + HD industrial camera |
11 | Mounting accuracy | ±0.01mm |
12 | Temperature Interface | 3 pcs |
13 | Tin spot monitoring | Optional external camera to monitor solder ball melting process during welding |
14 | Camera in and out | Auto out & in |
15 | Overall dimension | L600×W640×H850mm |
16 | Other function | 5 working modes. Auto/ manual mode switch freely |
17 | Weight of machine | 60kg |
What is the specification of WDS-650 mobile phone repairing machine?
Independent 3 heating zones temperature control system
1.The upper and lower hot air heating, IR preheating zone adopts imported infrared gold-plated light tube to heat up quickly,which can heat up at the same time from the top of he component to the bottom of the PCB, to make the PCB board heated averagely,ensure welding effect;bottom IR heating,temperature precision control within ±1℃.8 segment temperature control independently.Infrared gold-plated light tube control heating independently.LED module repair machine
2.Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.
3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;
4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.
(2 languages inside,English and Chinese,and can change them according to your requirement.)
Precision optical alignment system
Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.LED module repair machine
Multi-functional and humanized operation system
1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.
2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
(New WDS-650 has automatic camera,controlled by motor,can
pull it out by hand as well.)
Superior safety protection function
With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.LED module repair machine
1,Standard export wooden package for bga rework station:70*81*90cm,105KG;
2,Delivery in 2 workdays after payment confirm;
3,Shipping by TNT, UPS ,DHL,FEDEX, EMS or by air ;
4,Loading port: Shenzhen or Hongkong.
Can you show me some details about your company?
Why WDS?
1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemblling machine team + packaging+free training+professional whole-life after-sell service;
2. Logo/Brand:Customer's designs and logos are welcome,we can silk-print your own logo company;
3. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;
4. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries;
5. 100% NEW from WDS factory;
6. Over 20 R&D engineers, with 10 year experience;
7. Over 100000 Global User;
8. All models approved CE ISO9001;
9. 100% QC inspect before shipment;
10. High quality & competitive price.

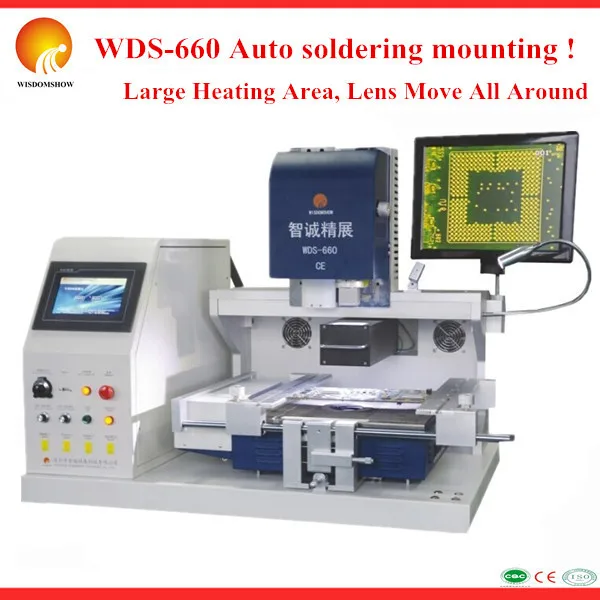

Do you like it?Popular automatic bga repair machine WDS-660
