Portable SHR IPL Intense Pulsed Light Laser Elight Skin Tightening beauty Equipment with 1-10Hz High Frequency

Portable SHR IPL Intense Pulsed Light Laser Elight Skin Tightening beauty Equipment with 1-10Hz High Frequency

IPL

The Intense pulsed light (IPL) is a type of intensive, broadband, coherent light source which has a wavelength spectrum of 420 nm -1200 nm. The light-based component delivers optical energy that is absorbed by specific chromophores in the skin, which is converted to heat, according to the principle of selective photothermolysis. So IPL’s light affects pigmentations, broken capillaries and hair follicles. In the meanwhile, IPL also give a boost to collagen production, which can make the skin more youthful, radiant and bright and remove fine wrinkles.

IPL SHR

IPL SHR (Super hair removal) is not like the traditional IPL hair removal to use single pulse to heat up the hair follicle. It is use high

frequency 10Hz but with low energy which accumulate to reach the energy required to remove hair. Which use special 690~950nm SHR filter to make sure the safety treatment. IPL SHR

was found to be most effective and painless hair removal treatment in the world.

• Factory direct sale IPL laser hair removal machine

• Support IPL SHR & EPL two handpiece

• Interchangeable multifilters for different treatments

• Wavelength include: 430/530/560/690/640~1200nm, 690~950nm for IPL SHR

• Big spot size: 15x50mm

• Eenrgy level 1~60J/cm2 adjustable

• Standard mode/ Professional mode/ SHR mode available

• Luxry 8" ture color touch screen

• Best cooling system with copper radiator. TEC water tank cooling optional

• Support IC card and USB function

AFT SHR IPL is the latest technology for permanent hair removal, which is having a sweeping success in the aesthetic field. (The similar technology with OPT SHR ) . ADM Portable IPL equipment adopt the AFT & OPT technology . AFT (Advanced Fluorescence Technology) is a multi-spectrum pulsed light, with the wavelength of 650-950nm, which is narrower than traditional IPL(420-1200nm), making the treatment painless. “FEE” ( Fluence Emitted Equally ) and “In Motion” technology is a breakthrough in permanent hair removal with light technology which secure the safety and ensure the efficiency of the treatment.

Besides, ADM Portable IPL SHR equipment combine the latest AFT (SHR ) technology with the common IPL filters in one machine .No only for the effective hair removal treatment but also for the traditional SR / Acne removal / Pigmentation removal and vascular treatment etc .

Specifications:

Item	Descriptions
Control panel	8 inch LCD touch screen
Working Frequency	Adjustable range: 1HZ ~10HZ ；
Power supply	1200W
Treatment handpiece	IPL handle (filters)
Standard filters	430nm /530nm /590nm/750nm /690nm/640
Light guidance	Sapphire
Filters optional	480nm and 560nm
Alarm system	Temp alram + water alarm + lighting alarm
Safety dectection	Always
Enery	10-60J(IPL)
Cooling system	Semicondutor refregirator cooling + Water cooling + Fans cooling
Size of the treatment area	15mmx50mm(standard) 12mm*30mm(optional)
Power	AC230V±10%,50Hz±1Hz AC110V±10%,60Hz±1Hz
Net weight	17kgs
Package size	56cm*43cm*40cm

Features:

• Traditional IPL treatment functions

• Advanced SHR treatment function

• 50 0000 working shooting

• 7 different treatment filters

Applications :

1. Permanent hair removal: covers all kinds of hair and skin type, limbs hair, axillary hair, beard, lip hair, etc.

2. Vascular lesions: telangiectasis, bottle nose, varicosity, rosacea, spider vein

3. Pigmentation : freckle/old spots/chloasma/age pigments removal, sun spots/ chorioplaque removal, eliminating dotted or massive chromatosis

4. Skin Rejuvenation: improve coarse pore, skin rough and dim complexion; make the skin white, color and luster uniform, and skin restoring elastic

5. Wrinkle removal : Removal of forehead wrinkles, crow's feet, nasal furrow wrinkles, neck wrinkle

6. Acne treatment : Anaphylatic pox, acne, acne scar, blackhead

Treatment interface:

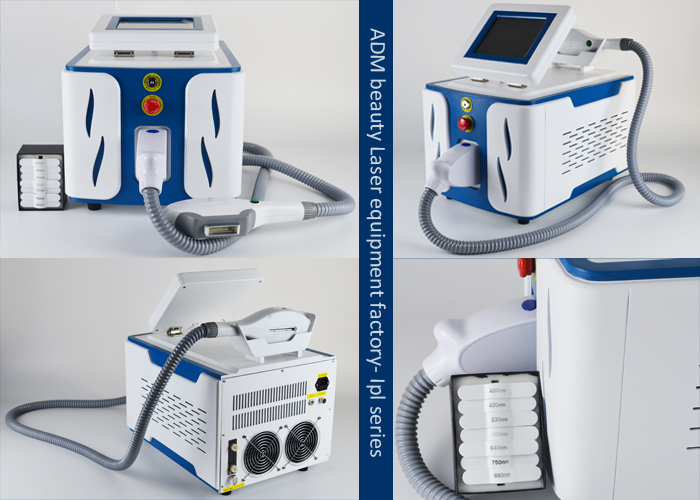

Machine details:

Q1: Delivery methods ?
we can offer the door to door service by air or by sea, just depend on your actual request. Such as DHL, UPS, TNT, FEDEX…

Q2: What's package ?
Strong and beautiful aluminum alloy box for long distance transportation.

Q3: Delivery time ?
3-5 working days when we get your order from your side .

Q4: After sale service or technology supports ?
we have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, online chat (Skype, Google talk, MSN, Yahoo…).

Q5: OEM & ODM service ?
OEM & ODM service ? are approved! we offer professional services on software & hardware design. we will try our best to satisfy your request.
