1.Mitsubishi servo motor pull the material,high precision.
2.MITSUBISHI PLC with touch screen to set any length,quantity,speed.
3.3 inch inflatable shaft for unwinding.
4.14mm thickness steel wall make machine run stable.
5.Pulling roller coat thick PU rubber and won't scratch the material.
6.Polished and anodized aluminum guiding roller,very smooth and never harm the material.
7.Optional:Panasonic photocell to track the printed mark for precise cutting.
8.Long service life of the SKD11 cutting blade and cut the sheet edge smoothly.
9.Other standard machine:500mm,600mm,800mm,1000mm,1400mm.
Swing arm to control the feeding tension.On the touch screen,you can set any length,quantity,speed ,etc.
This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,aluminum foil etc.
*the voltage can customize according to your country standards.
Taiwan brand servo motor & Japan brand mitsubishi PLC;
Touch screen control panel,easy to operate;
Can preset and adjust the cutting length ,total cutting quantity and speed;
Afer the machine shutting down,it still can remember the amount automatically;
Cutting tolerance can be reach ±0.1mm based on material;
Kiss cut (half-cut)
Static electricity eliminator
Cutting with position sensor
Sizing cutting for conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.
Material:Utility knife and fixture

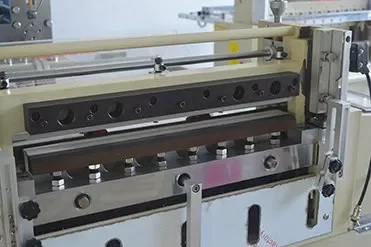

This unit can finish kiss cutting .Below anvil is connected with springs,which could absorb shock and make sure the kiss cutting well.Easy to adjust and maintain.
If added photo sensor for cutting machine,it can cut thr printed material.the photo sensor will sense the printed marking and make sure the cutting blade cut the material at a specified place.
- Free sample testing and video for your reference
- Prompt delivery whthin 24 hours
- One year warranty ,whole life technical support
- Free training in our factory available before delivering machines
- Engineers available to service machinery overseas
- Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.
- Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipments make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
If you want to ask for quotation ,please tell us details information as much as you can ,so we can quote to you as soon as possible .
|Material||Pictures are appreciated if possible|
|Diameter||ID & OD|
|Length you want to cut||mm|
