8 digits LCD display Smart Three phase DIN Rail kwh Prepaid Energy Meter ADL300-EY for university dormitory shopping mall
- Negotiable |Get Latest Price
- 1
- 1000 per Month
- T/T Credit Card
-
ADW300 RS485 Interface Three phase AC kWh IOT electricity energy meter connection multifunction power quality analyzer
-
CE Certificates RS485 Port with Modbus-RTU protocol 3 phase electricity energy meter installation requirements
-
Acrel wireless ADW300 U I P Q S PF Active Power three phase 4g smart energy electricity meter price
-
Acrel kWh Accuracy Class 0.5 LCD Display wireless three phase smart electric energy meter price
-
4G WIFI optional RS485 ADW300 Din Rail Mounted 4 channels temperature 3 phase energy power meters price
-
1 channel residual current optional U I P Q S PF three phase energy kwh meter wifi 35mm din rail With Interface RS485
Product Description


● Rated Voltage: 3x380~456Vac L-L
● Rated Current: 3x10(80)A AC (via direct connect); 3x1(6)A AC (via CTs)
● Communication: RS485 Modbus, Infrared
● Multi-rate&Multi-tariff: 4 Tariff Rates (Spike, Peak, Valley and Flat kWh Unit Price)
● Display: LCD (8 digits)
● Installtion: 35mm DIN Rail
● Standard&Certificate: CE
● Topping up by Mobile APP (Online)
● Topping up by Prepaid System (Online)
● Low Balance Credit Alarm by sending SMS



Parameter | Description&Value | ||
Measurement | kWh&kVarh | Total active kWh (bidirectional --positive and negative in total) | |
Electrical Paratmeters | U (Voltage), I (Current), P (Active Power), Q (Reactive Power),S (Apparent Power), PF (Power Factor), F (Frequency) | ||
Function Mode | Prepaid Mode | Meter will shut down the power once the credit balance is below zero. (Data like credit balance is saved in the meter) | |
Postpaid Mode | Meter won't shut down the power once credit balance is below zero. (Can remotely control the meter to shut down the power by using Prepaid System) | ||
Mode Change | Meter can change the mode between prepaid and postpaid by receiving the command from prepaid system | ||

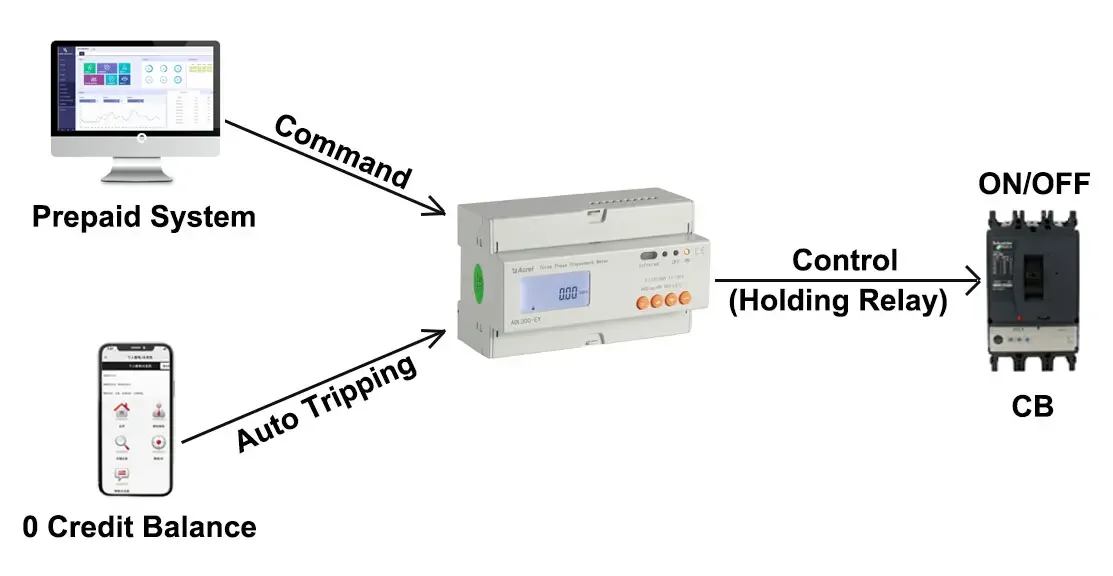

Control | Auto-tripping Control | Auto-tripping control is processed by the built-in high-capacity holding relay of the meters to realized on-off control of circuits breaker, also, this type of control will only be triggerred when meter is in Prepaid Mode | |
Remote Control | Remote control will be command by prepaid system. When users give a command of switch on-off to a certain meter, this command will be send to meters through wireless communication and finally meter will shut down or recover the power after receiving the command. This type of control can be done when meter is in Postpaid Mode | ||
Multi-rate Multi-Tariff | Optional Function | 4 tariff rates (spike, peak, valley, flat); 14 time intervals by day | |
Input Voltage | Rated Voltage | 3x380~456Vac L-L (Voltage signal input will be also served as power supply for meters) | |
Frequency | 45~65Hz | ||
Consumption | <4VA (each phase) | ||
Input Current | Rated Current | 3x10(80)A AC (direct connection); 3x1(6)A AC (connected via CTs) | |
Starting Current | 0.004 Ib (direct connection); 0.002 In (connnected via CTs) | ||
Accuracy | Measurement | Class 0.5s | |
Clock | ≤0.5s/d | ||
Pulse | Pulse Width | 80ms±20ms | |
Pulse Constant | 6400imp/kWh (direct connection); 400imp/kWh (connected via CTs) | ||
Communication | RS485 Interface | MODBUS-RTU Protocol | |
Infrared | Used for Meter Reading | ||
HMI | LCD Display | 8 bits section LCD display | |
Keypads Programming | Setting of communication, current ratio and etc. | ||
Mechanical Feature | Out-line Dimension (L*W*H) | 72mm*88mm*70mm | |
Max Wiring Ability (with Flexible Cable) | 25mm2 | ||
Environment | Operating Temperature | -25℃~+55℃ | |
Storage Temperature | -40℃~+70℃ | ||
Humidity | ≤95% (No condensation) | ||
Altitude | <2000m |
